LuxStar LX-50 Laser Welding System

Posted by Randy Lusignan on 8/23/18 8:00 AM

The GSI Lumonics series of LuxStar® lasers can address a wide range of precision spot welding applications in the electronics, medical, automotive and fine mechanics markets.

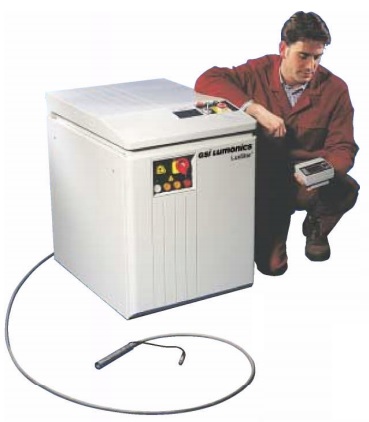

LuxStar LX-50The Lx-50 is one of the mid-power models in the LuxStar portfolio. Available options include energy share and either internal or external time share beam delivery systems in order to obtain welds at multiple locations.

The Lx-50 model has WeldPerfectTM control which provides fully automated control of the laser output resulting in high stability and hence consistency of the welding process. In addition, the laser pulse parameters are programmed directly in kilowatts for peak power and milliseconds for pulse duration. These can be set via either the front panel control or RS232 interface.

Laser welding has a number of advantages over conventional techniques including:

  • Low heat input
  • Reduced distortion
  • Single sided welding access
  • No mechanical forces applied to the workpiece
  • No tool wear and hence consistent weld penetration

Global Service and Support

As the largest consumer in North America of flash lamps, TJS, Inc. (TJ Sales Associates, Inc.) provides support for the industrial, medical, aesthetic, and semiconductor laser markets globally. We offer laser services, components, refurbishing, and repairs for all types of laser systems. TJS’ field service engineers are fully trained in LuxStar system maintenance and troubleshooting. TJS also offers a full line of custom Comprehensive Service Contracts and Maintenance Agreements.

Click the specification image below to make it larger.

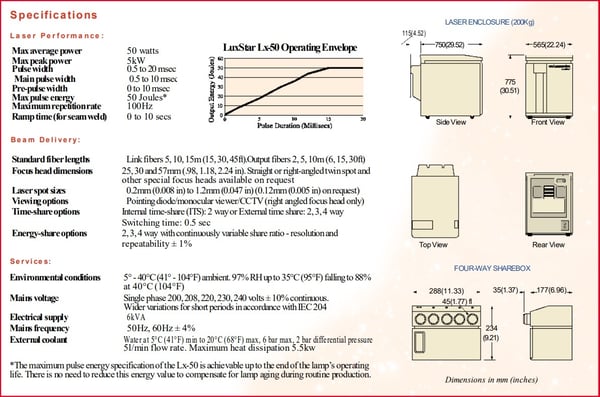

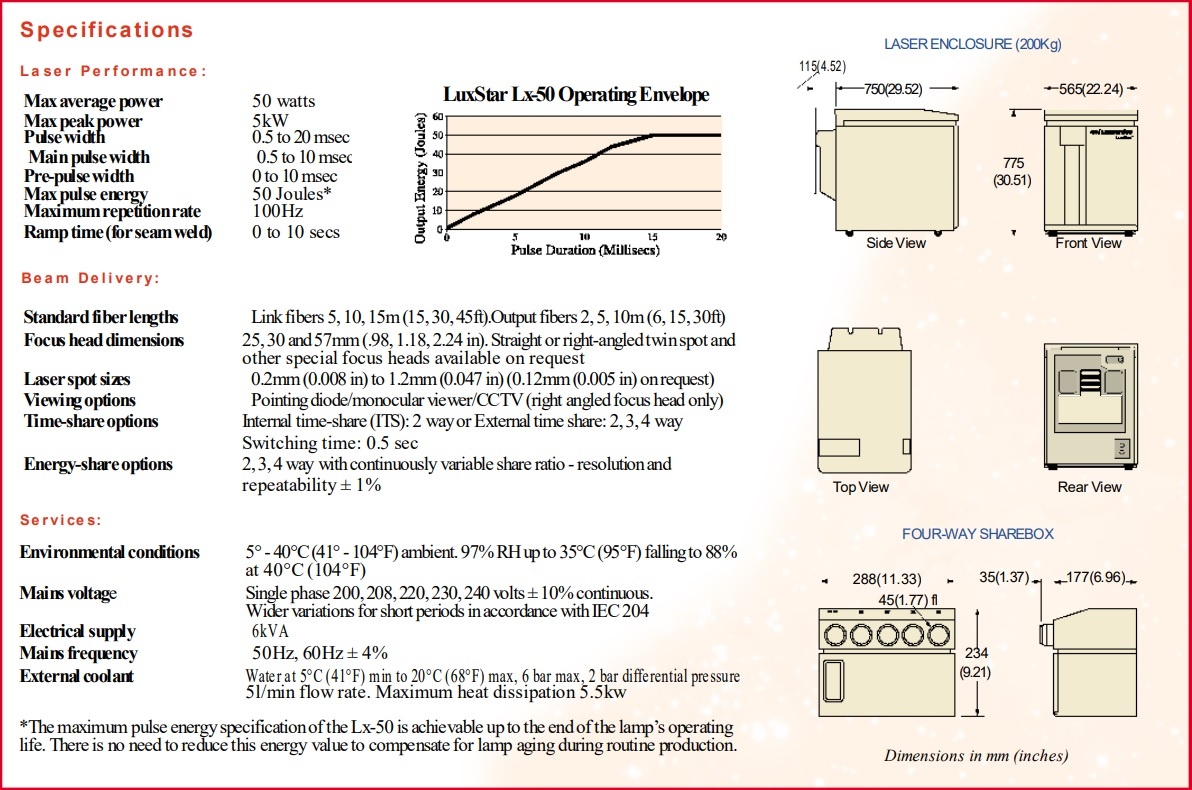

LuxStar LX-50 specifications

Specifications are subject to change. Please consult Product Center for complete details.

Learn More

Contact TJS and let us help you locate the right laser system components. Our trained and experienced staff can help you match your laser system requirements with our large stock of parts of laser systems so that you get the right part the first time.

Topics: Laser Support, Laser Welding
